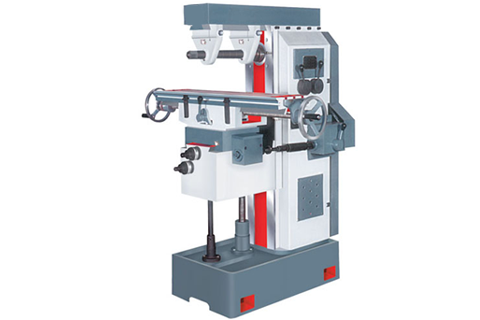

SPECIFICATIONS | |
Working Surface mm | 1050 x 250 |
Number of T-Slots | 3 |
Width of T-Slots | 15 mm |
Pitch of T-Slots | 62 mm |
Maximum Distance from Spindle Centre to Underside of Over Support | 125 mm |
MOVEMENTS | |
Longitudinal Movement of the Table by Lever / Screw | 600 mm |
Cross Movement of the Table by Screw | 230 mm |
Vertical Movement of the Table by Screw | 450 mm |
MILLING SPINDLE | |
Spindle Bore | 17 mm |
Inside Taper | ISO - 40 |
Arbor | 25.4 mm |
REVOLUTION OF MILLING SPINDLE | |
Number of Spindle Speed | 6 |
Range of Spindle Speed | 50, 85, 110, 240, 350,525 RPM |
Number of Feeds | 3 Feeds (0.9, 1.4, 2.25 Per Minute ) |
ELECTRICAL | |
Main Drive Electric Motor | 2 HP, 1440 RPM, 440 V. 3 Phase |
Coolant Motor | 0.11 KW, 2700 RPM |
OTHER DIMENSIONS | |
Floor Space | 550 x 925 mm |
Height | 1500 mm |
Coolant Tank Capacity | 20 Ltr. |

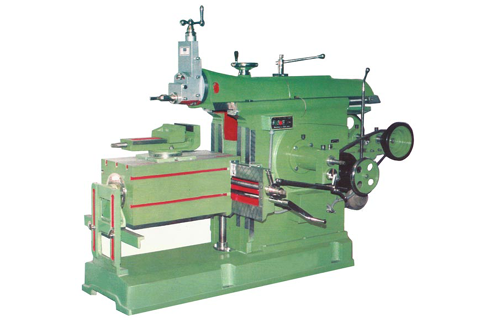

Specification :
Model | 24 |
30 |
36 |
40 |
Horizontal travel of Table |
600 |
700 |
810 |
940 |
Length of ram |
1225 |
1600 |
1750 |
1900 |
Length of ram stroke |
660 |
800 |
930 |
1025 |
Max. Distance from table to ram |
450 |
520 |
560 |
600 |
Min. Distance from table to ram |
50 |
50 |
60 |
60 |
Nos. of speeds |
4 |
4 |
4 |
4 |
Swiveling range of tool on either side |
60 degree |
60 degree |
60 degree |
60 degree |
Table size |
610 * 380 |
760 * 400 |
900 * 450 |
1015*508 |
Vertical travel of Table |
350 |
430 |
500 |
550 |
Vertical travel of tool slide |
140 |
160 |
185 |
200 |
Width of ram |
300 |
300 |
300 |
330 |
