Specification :

FRAME : The Frame Is Made From Steel Construction And Their Heavy Cross Section And Rigid Design Assured Minimum Deflection And Accurate Alignment Cast Iron Legs Will Be Supplied Up To 30 Ton Press.

CRANK SHAFT : Crank Shaft Made From Special Alloy Steel To With Stand The Effective Load, It Is Fitted With Gun Metal Bushes For Smooth Working With High Accuracy.

GEARS & CLUTCH : The Gears Are Made From Cast Steel Or Fabricated And Its Teeths Are Generated By Hobbing. The Clutch Is Provided Of Pin/ Rolling Key Type, It Is Also Rigid And Well Supported For The Mass Production. Clutch Can Give Continuous Stroke.

FLYWHEEL : The Flywheel Is Made From Gradead Cast Iron For Strength And Is Balanced For Efficient And Releasing Adequate Energy For The Pressing Operations.

LUBTICATION : A Lubrication System Has Been Provided For Lubrication The Sliding Surface And Moving Parts.

TABLE & RAM : Table and Ram Are Made From High Grade Heavy Duty Cast Iron & Properly Seasoned. They Are Perfectly Aligned To Match Each Other To Obtain High Accuracy & Precision Press Operation.

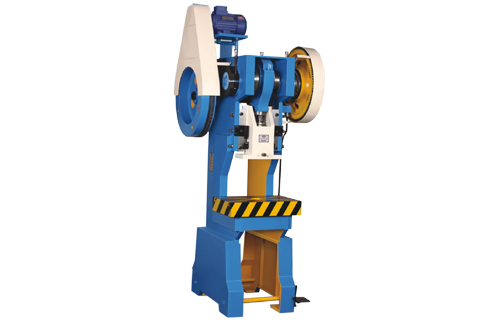

Steel Body Fixed Or Inclinable ''C'' Type Power Press

Ton Capacity Crank Shaft Dia. Stroke Adjusment Hole in Ram Hole in Bed Bed Size Dist. Bed to Ram D.Gear (spm) S.Gear(spm) Ungeared (spm) HP/RPM Ungeared HP/RPM Geared Weight Approx. (Kg.)	3 44 3-25 19 51 254x152 127 - 85 160 0.5/960 0.5/1440 160	5 51 5-38 25 63 305x178 153 - 75 150 0.75/960 0.75/1440 260	10 57 6-51 25 76 406x254 204 - 65 130 1/960 1/1440 500	50 102 12-89 44 127 660x406 332 35 50 90 5/960 5/1440 2400	80 120 14-114 51 178 762x508 381 - 40 - - 7.5/1440 4100	100 127 14-114 51 191 813x584 406 - 30 - - 10/1440 5200	150 140 16-127 57 203 915x610 410 - 30 - - 15/1440 6200	200 158 19-152 57 216 965x660 432 - 30 - - 20/1440 9500	250 165 20-165 63 228 1067x711 485 - 30 - - 25/1440 11500
