Wood Working Machine :

Surface Planer (Open Stand)

  • Specification :

  • Surface Planer Size
    10" x 48"
    13" x 51"
    13" x 60 "
    13" x 72 "
    Surfacing Capacity
    255 / 10"
    330 / 13"
    330 / 13"
    330 / 13"
    Length of Surface Table
    1220 / 48"
    1295 / 51"
    1525 / 60 "
    1828 / 72 "
    Rebating Capacity
    12.5 / 1/2"
    12.5 / 1/2"
    12.5 / 1/2"
    12.5 / 1/2"
    Cutter Block Speed (RPM)
    4000
    4000
    4000
    4000
    Circular Saw Table Size
    24" x 14"
    24" x 14"
    24" x 14"
    24" x 14"
    Up/Down Movement of Cir. Saw Table
    75 / 3"
    75 / 3"
    75 / 3"
    75 / 3"
    Max. Circular Saw Diameter
    300 / 12"
    300 / 12"
    300 / 12"
    300 / 12"
    Power Required HP/RPM
    2 / 1440
    2 / 1440
    2 / 1440
    2 / 1440
    Approx Wt. of Machine
    220 Kg.
    250 Kg.
    300 Kg.
    350 Kg.

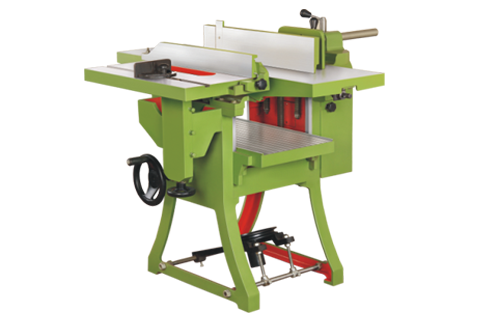

Combi Planer (Open Stand)

  • Specification :

  • Comi-Planer Size
    10"
    13"
    Surfacing Capacity
    254 / 10"
    330 / 13"
    Max. Planing Width
    254 / 10"
    330 / 13"
    Thicknessing Capacity
    177 / 7"
    177 / 7"
    Length of Surface Table
    1140 / 45"
    1140 / 45"
    Rebating Capacity
    12.5 / 1/2"
    12.5 / 1/2"
    Length of Thickness Table
    610 / 24"
    610 / 24"
    Feeding Speed (feet per minute)
    24
    24
    Cutter Block Speed (RPM)
    4000
    4000
    Circular Saw Table Size
    24" x 14"
    24" x 14"
    Up/Down Movement of Cir. Saw Table
    75 / 3"
    75 / 3"
    Max. Circular Saw Diameter
    300 / 12"
    300 / 12"
    Power Required HP/RPM
    2 / 1440
    2 / 1440
    Approx Wt. of Machine
    275 Kg.
    305 Kg.

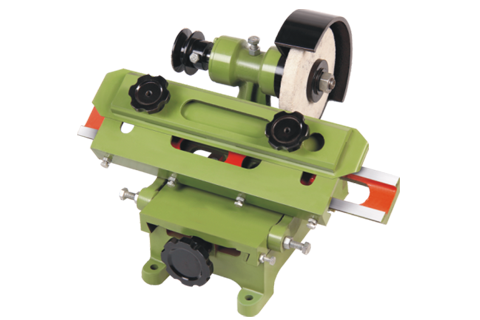

Blade Grinder

Specification :

Max. Grinding Capacity
330 / 13"
Grinding Wheel Diameter
150 / 6"
Power Requier - HP / RPM
0.5 / 1440
Approx wait of Machine
25 Kg.

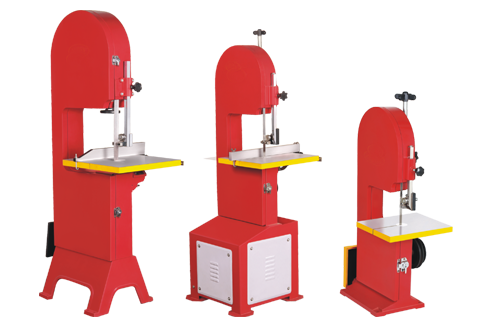

Band Saw Machine

  • Specification :

    SPECIFICATION
    18"
    12"
    9"
    Dia. of Saw wheel
    455 mm
    295 mm
    225 mm
    Speed of Saw wheel
    400 / 620 RPM
    850 / 1520 RPM
    850 / 1520 RPM
    Table Size
    508 x 508 mm
    295 x 340 mm
    225 x 300 mm
    Power Required
    2 HP / 1440 RPM
    1 HP / 1440 RPM
    0.5 HP / 1440 RPM
    Cutting Thickness
    150 mm
    100 mm
    50 mm
    Approx Weight
    340 Kg.
    115 Kg.
    55 Kg.









Main Body Frame is Made from Graded Cast Iron.

  • Flywheel are Dynamically Balanced.

  • Features :

  • Alluminium gap cover

  • Table with 45 tilt (Available in 12" & 18")
  • Upper saw blade guide systems
  • Dynamically balanced cast iron broad wheels

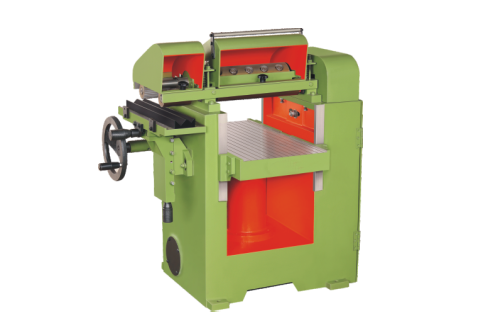

Thickness Planer

  • Specification :

Meet MINI Max
10"
13"
18"
Max. Planing width
254 / 10"
330 / 13"
455 / 13"
Thicknessing Capacity
200 / 8"
200 / 8"
200 / 8"
Length of Thickness Table
660 / 26"
660 / 26"
660 / 26"
Power Required HP/RPM
3 / 1440
3 / 1440
5 / 1440
Approx Wt. of Machine
330 Kg.
350 Kg.
420 Kg.

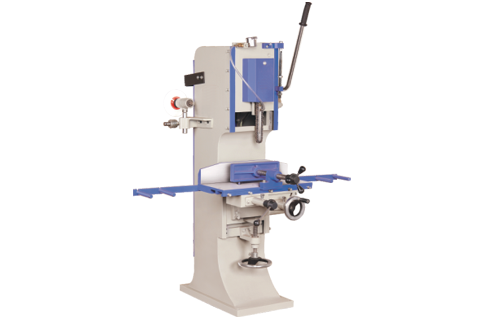

Chain Mortiser

  • Specification :

  • Chain Mortiser Size
    mm / inch
    Table Size
    560 x 228 / 22" x 9"
    Up/Down movement of Table
    75 / 3"
    Cross movement of Table
    100 / 4"
    Longitudinal movement of Talbe
    305 / 12"
    Max. Depth of cut
    140 / 5 1/2"
    Electic motor
    300 / 12"
    Power Required HP/RPM - 1 Phase / 3 Phase
    2 HP / 1440 RPM
    Weight
    242 Kg.
